THE NEW INTRON-X System
The INTRON-X is a state-of-the-art modular IP-based platform for scalable Intercom, PA/GA and PA solutions from INDUSTRONIC. With open interfaces for system networking, connection of external communication and control systems, and a modular and flexible design, the INTRON-X provides solutions for all types of industrial communication needs and requirements.
1 System - X Solutions
-
The new system generation INTRON-X can be used as Intercom, PA/GA, PA, (Wide Area Notification) or as a combined system for various industrial communication requirements.
-
It excels with a modular design, easy scalability, flexibility and integration into existing customer networks.
-
This new system generation provides you with advanced IP-based solutions and interfaces. The consistent design simplifies connectivity and system structures.
-
Existing digital and analog systems can be seamlessly integrated into new system architecture.
Fast Facts
-
Fully IP-based system
-
Seamless integration by using existing IT infrastructure
-
Easy installation due to industrial 19'' IT design
-
Decentralization of single components in the network
-
Scalable from small systems up to large networked systems
-
Flexible redundancy possibilities
A state-of-the-art modular IP-based platform
The INTRON-X is a state-of-the-art modular IP-based platform for scalable Intercom, PA/GA and PA solutions from INDUSTRONIC. With flexible interfaces for system networking, connection of external communication and control systems, and a modular design, the INTRON-X provides solutions for all types of industrial communication needs and requirements.
XTENDING YOUR POSSIBILITIES - THE NEW INTRON-X SYSTEM
The following interview with Christine Segler, Director of Products, and Roland Leuthe, Head of Development Systems Software / INTRON-X Project Manager, gives an insight into the development of our new INTRON-X system.
System Features & Functions

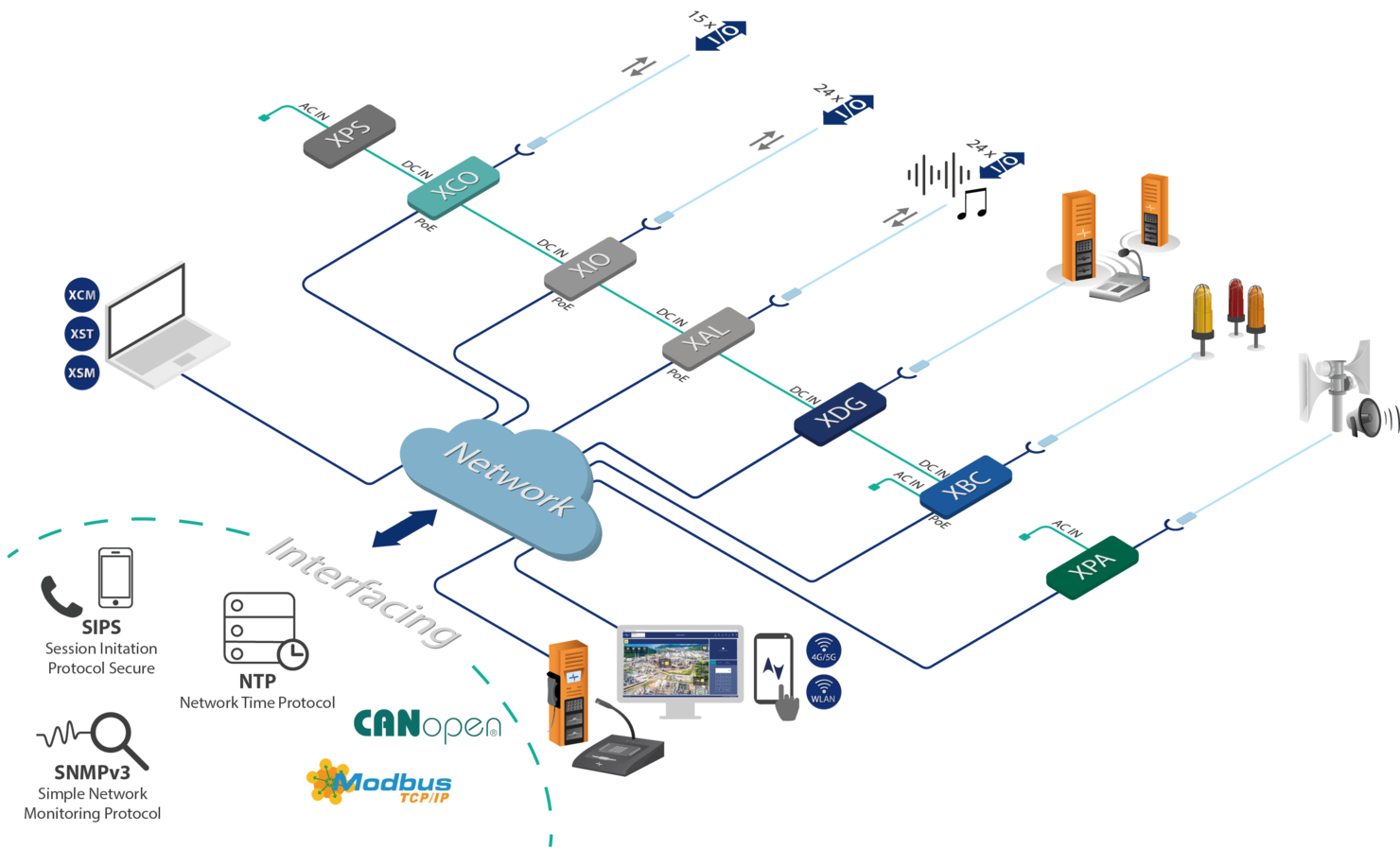

Overview of the INTRON-X Modules
The INTRON-X modules have a uniform and fanless industrial design with LEDs and ports. All INTRON-X modules have the same size so that 3 of them can be flexibly combined in a 19" chassis. They can be installed into INDUSTRONIC cabinets or existing cabinets on site.
PMOD 1 XCO 001
X-Controller Module
Features and Functions
- Controller for Intercom, PA/GA and PA solutions with up to 400 terminal devices
- Networking of up to 250 X-Controllers
- Control of warning sequences
- 4 Gigabit Ethernet interfaces for flexible network connection
- 12 bidirectional potential-free control inputs and outputs
- Power supply of the internal electronics via PoE (with redundancy) or separate DC supply
- Integrated self-monitoring
- Configuration via INDUSTRONIC management tools
PMOD 8 XDG 001
Digital Gateway Module
Features and Functions
- Connection of up to 8 digital INDUSTRONIC terminal devices via 2-wire technology
- 2 Ethernet interfaces for redundant network connection
- Redundant connection of terminal devices to 2 different XDG modules possible
- Integrated self-monitoring
- Permanent automatic monitoring of all connected terminal devices, connection cables, and power supplies
- Configuration via INTRON-X management tools
PMOD 24 XIO 001
I/O Module
Features and Functions
- 24 bidirectional potential-free control inputs and outputs
- 2 Ethernet interfaces for redundant network connection
- Power supply of the internal electronics via PoE (with redundancy) or separate DC supply
- Integrated self-monitoring
- Configuration via INDUSTRONIC management tools
PMOD 6 XAL 001
Analog Line Module
Features and Functions
- 6 analog audio interfaces with
- 2 x 4-wire audio (full duplex)
- 4 x 2-wire audio (half duplex)
- 24 bidirectional potential-free control inputs and outputs
- 2 Ethernet interfaces for redundant network connection
- Power supply of the internal electronics via PoE (with redundancy) or separate DC supply
- Integrated self-monitoring
- Configuration via INDUSTRONIC management tools
PMOD 4 XBC 001
Beacon Control Module
Features and Functions
- Control of up to 4 AC or DC flashing warning beacon circuits
- Flashing warning beacons can be wired as line or loop
- Xenon, LED, etc.
- 115 / 230 V AC
- 24 / 48 / 60 V DC
- Continuous automatic line monitoring of the flashing warning beacons for cable break, short circuit and ground leakage (option)
- 2 Ethernet interfaces for redundant network connection
- Power supply of the internal electronics via PoE (with redundancy) or separate DC supply
- Integrated self-monitoring
- Configuration via INDUSTRONIC management tools
PMOD 500W XPS 48V
Power Supply
Features and Functions
- High efficiency
- Temperature-controlled fan
- Protection against excess temperature, excess load / short circuit, surge
- Wide-range input
- Fault indication output
- Redundancy operation possible by connecting two power supplies in parallel
2 XDG 0x1
Digital Gateway Module
Features and Functions
- Connection of up to 2 digital INDUSTRONIC terminal devices via 2-wire technology
- 2 x 10/100Base-T interfaces (type 2 XDG 001) or 2 SFP interfaces (type 2 XDG 011) for redundant network connection
- Redundant connection of terminal devices to 2 different XDG modules possible
- Integrated self-monitoring
- Permanent automatic monitoring of all connected terminal devices, connection cables, and power supplies
- Configuration via INTRON-X management tools
